TEMPERATURE TRANSMITTERS AND GAUGES
TEMPERATURE TRANSMITTER
The explosion proof field mounted HART temperature transmitter features a local display, HART compatibility, and a 4-20mA output. The field mounted transmitter is available as a complete RTD or thermocouple assembly customized to your process.
| OPERATING TEMPERATURE | CALIBRATION TEMPERATURE | OUTPUT | ACCURACY |
| -40°C to +85°C | 20…28°C | 4…20 mA | Better than 0.05% of selected range |

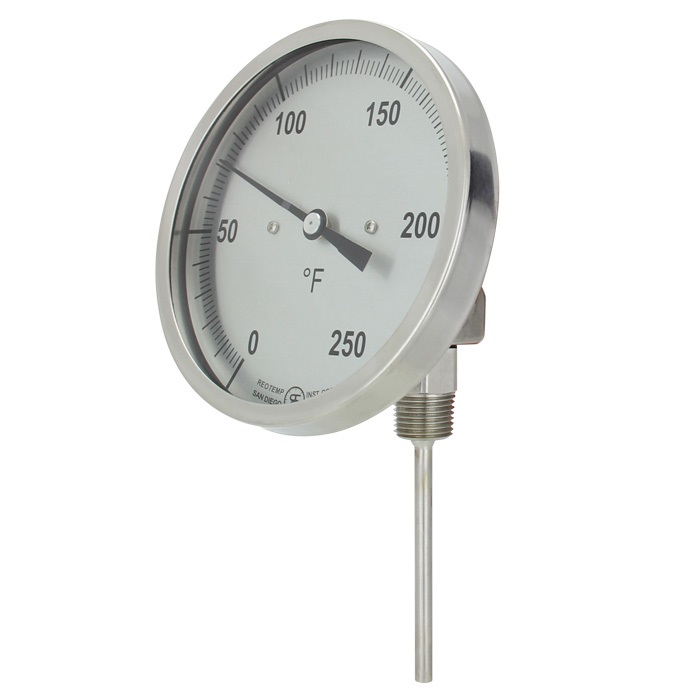

TEMPERATURE GAUGE
Bimetal Thermometers are reliable and accurate temperature sensors requiring no electricity or wiring. Back Connect Thermometers are ideal for local, eye-level temperature readings in most process applications. They can be recalibrated with a turn of the calibration screw on the back of the dial. A variety of options are available for your specific process needs.
| DIAL SIZE | STEM LENGTH | STEM DIAMETER | ACCURACY |
| 3”, 4” or 5” | 2” to 80” | 1/4” (std) | 1% Full Scale (ASME B40.3 Grade A) |

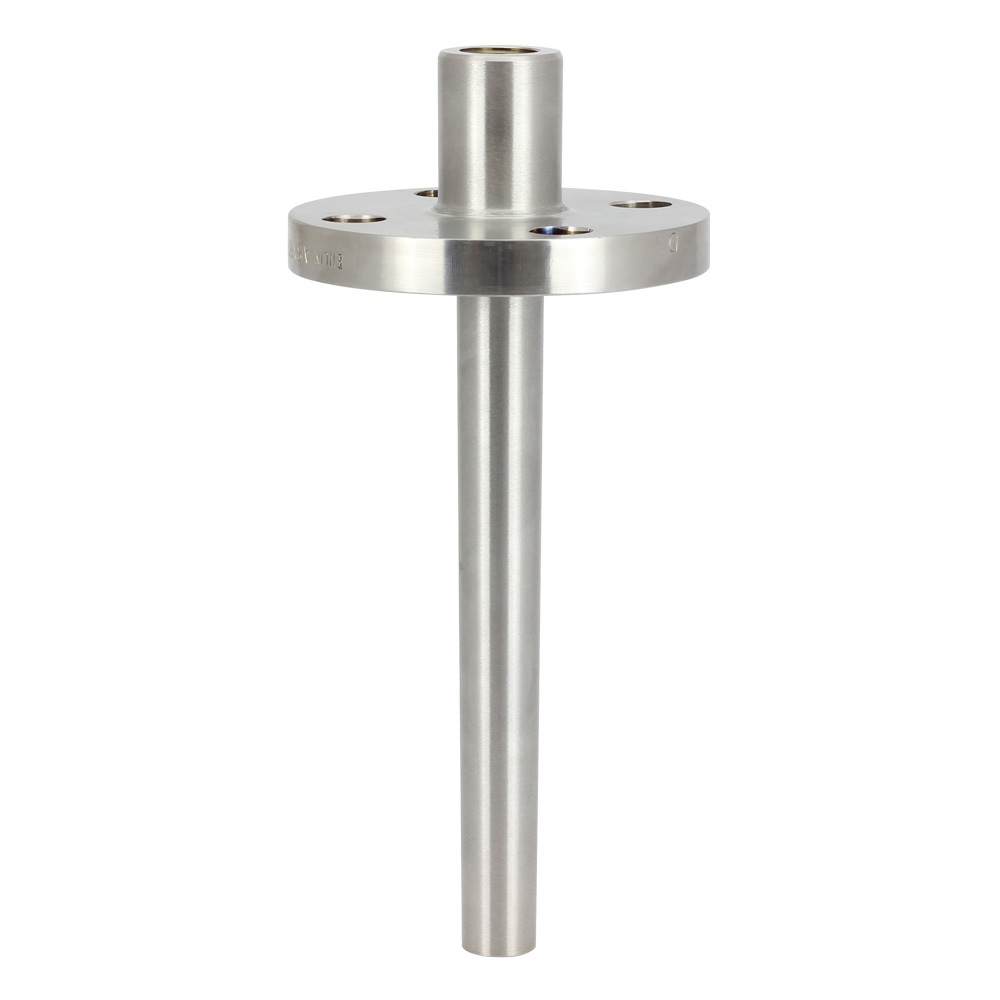

THERMOWELL
Flanged Thermowells make it possible to remove an instrument without dropping pressure or losing contents of the process. Thermowells also protect the instrument from getting bent by the process media. Flanged thermowells are the preferred well for applications that require frequent removal or replacement due to corrosion or other hazards. Flanged wells bolt to a mating flange that is installed on the process piping. Common installations include large pipes with high pressure and high corrosion.
